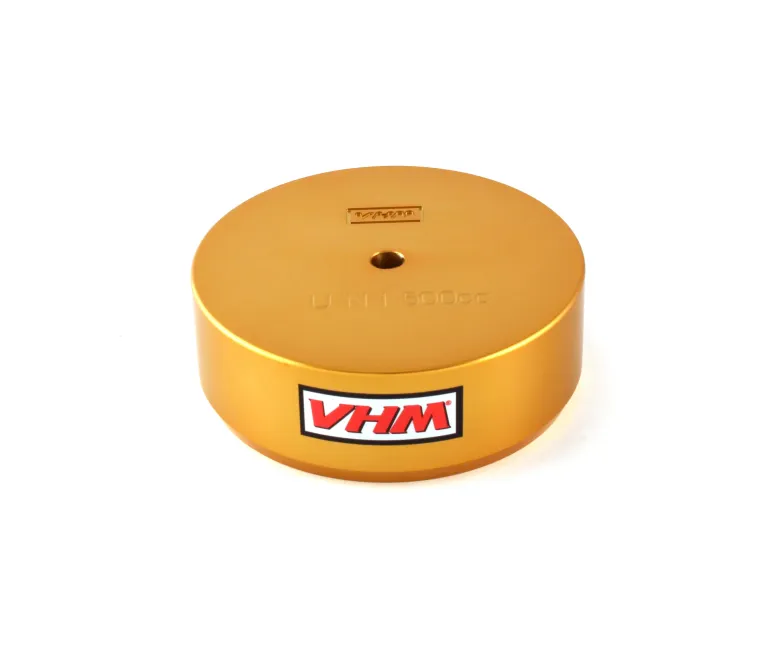

VHM, Measuring tool 500cc, w/o dial indicator

To use the VHM cylinder head and insert correctly, the piston height is a very important value to set up. Then you'll be able to check if the squish and volume of your insert is correct and otherwise adjust the piston height so it does match.

This tool is for an engine capacity of 500cc. There's only an upper part which is used for the actual measuring on the cylinder. You need a surface plate for calibration, a flat surface will do for calibration of the tool. The dial indicator is seperately available.

Accurately measure the piston height

To measure is to know - improve your tuning

Maximum cylinder bore Ø91 mm. Dial indicator and surface plate is not included.
